Gateways

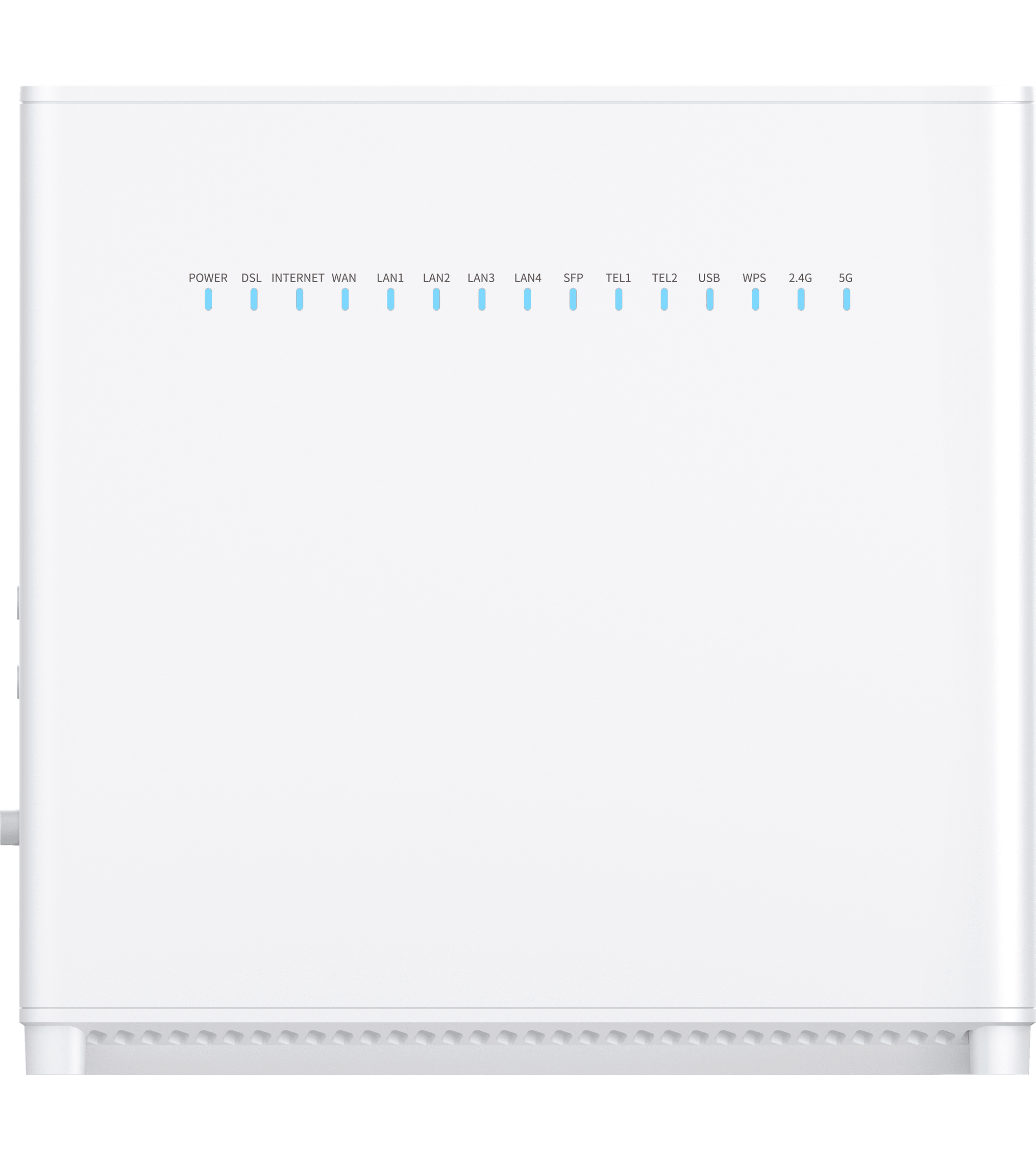

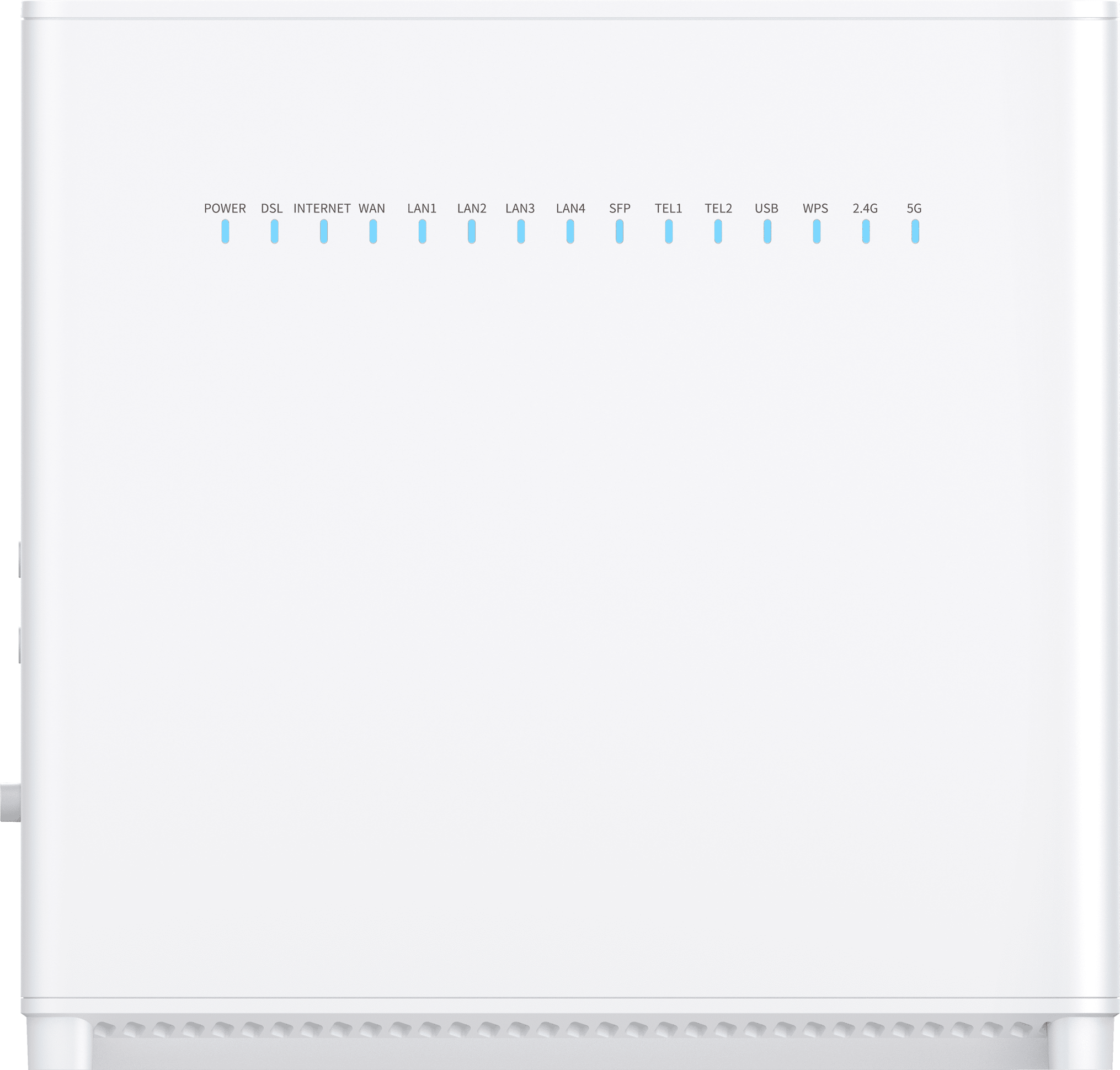

DSL Gateways

Heights Telecom offers innovative and custom DSL gateways according to operator demand with cost effective price.

Heights DSL gateways meet all customer requirements and type of home network needs.

Heights Telecom is the first company developed a Gateway based on BCM containers.

Fiber Gateways

Heights Telecom offers innovative and custom Fiber gateways according to operator demand with cost effective price.

Heights Fiber gateways meet all customer requirements and type of home network needs.

Middleware

Heights’s software is based on container, which allows easy integration for 3rd party application. One software platform supporting all different Heights Telecom hardware platforms (xDSL, LTE and Fiber).

This architecture allows reduction of QA as applications can be verified and approved independently from GW firmware.

Selected the Broadcom Execution Environment Platform (BEEP) – Standards Compliant supporting BBF and HGI. One software platform supporting all different Heights-Telecom HW platforms (DSL & Fiber).

Full TR69/TR157 support for container creation and management.

Orchestration

In order to manage containers & services and create service activation, an orchestration system is required.

Heights Telecom provides an orchestration system for services & Containers management that allows to launch services in fast TTM and unified management of all cloud services.

The orchestration system consists from 3 main modules:

a. Northbound API – API for Operator OSS/BSS and service’s cloud management

b. Workflow tools – service provider can create a service plan for service activation

c. Dashboard for admin – widgets UI format for operational dashboar

Main Features:

  1. Containers creation and activation
  2. Container’s resource management
  3. Workflow tools
  4. Service provisioning
  5. Containers & services management
  6. Northbound API for integration
  7. Devices and services monitoring
  8. CPE ZTP (Zero touch provisioning)
  9. CPE configuration backup and restore
  10. Operational dashboard

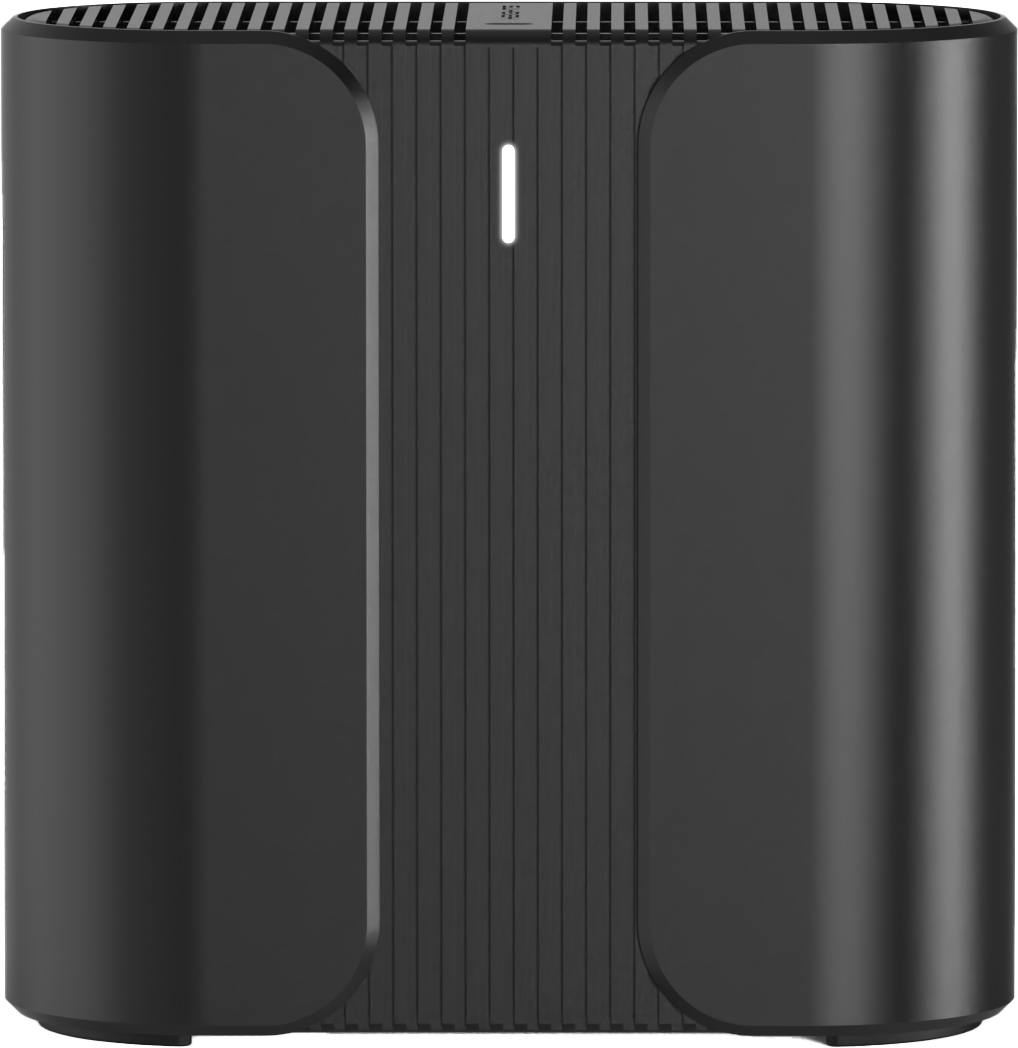

WiFi EasyMesh ERO1

ERO1 uses easy-mesh solution (“Multi AP”) to bring full wifi coverage to everywhere in the house with best performance and reliable wifi.

The wifi controller is part of your gateway and you only need to add wifi extenders to distribute the wifi signal to each room in your home.

This will allows the operator to ensure an end-to-end high-quality experience for customers.

Model ERO1 WiFi EasyMesh™ compliant AP/Extender, support fast WiFi with 4×4 .11ac (5GHz) and 2×2 .11n (2.4GHz). The product also include Giga ETH port LAN/WAN and USB connector for Z-wave Smart Home dongle.

High Speed WiFi

ERO1 delivers fast and reliable WiFi to everyone and anywhere in the home. ERO1 can ensure an end-to-end high-quality experience for customers.

The easy-mesh master unit is part of the GW and can be connected to it, up to four WiFi ERO1 extenders.

Self Installation

Automatic onboarding and Autoconfiguration.

Full APP management with Auto Installation with Ethernet RJ45 cable or via QR APP.

Steering

Clients transition seamlessly to the best available AP and the best available band (2.4/5G).

Based on 802.11e/k/v/r standards.

Value add servives

Parental control, Speed Test, Guest Network.

Management

Full management via TR69/TR181 and with cloud capabilities for remote easy-mesh unit management.

smart house

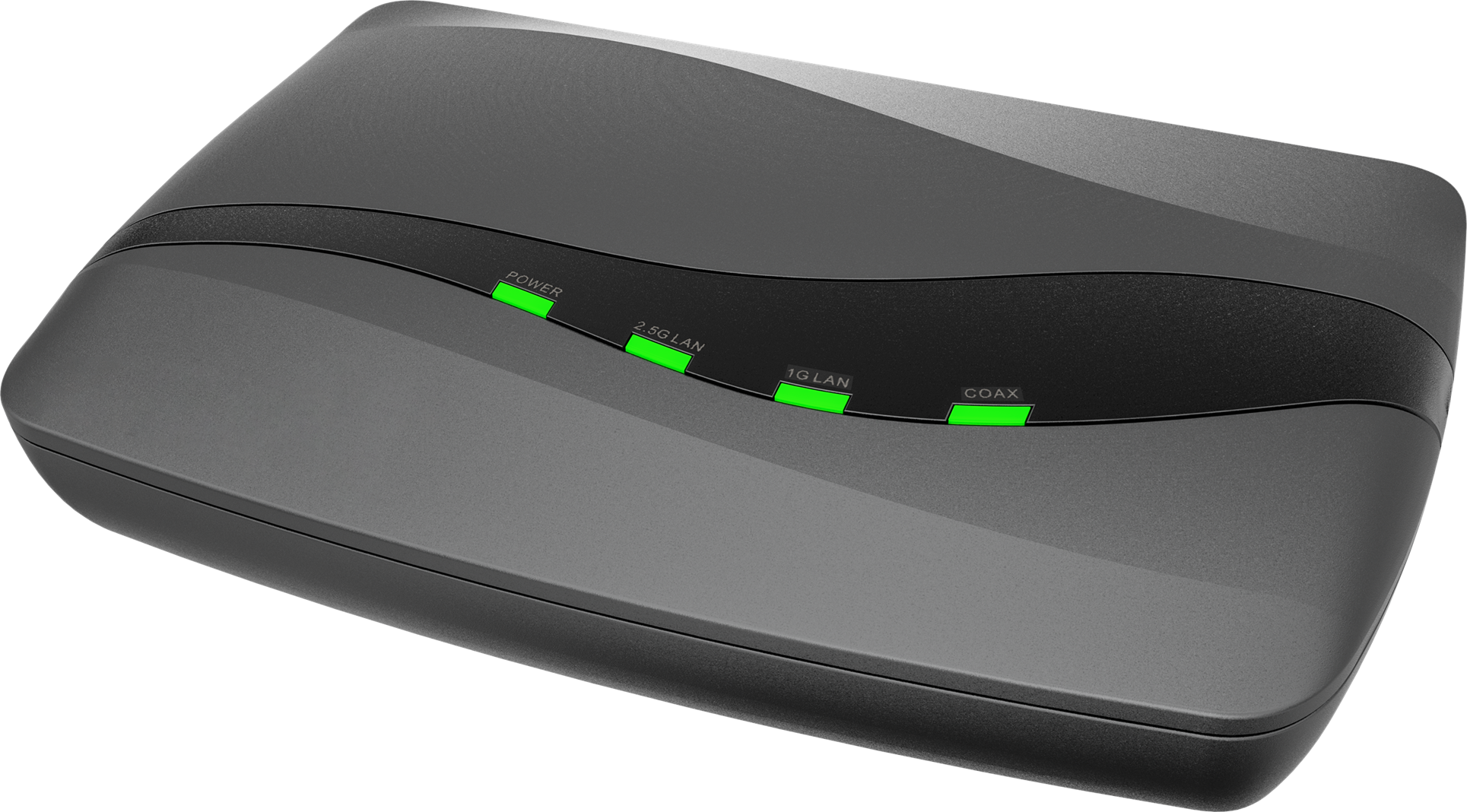

MoCA-MXL003 Adapter

Heights MoCA adapter expanding the infrastructure layout in the client house.

The MOCA-MXL001 is a MoCA2.0 adapter, based on MxL3707-AQ-R , which is Maxlinear’s third generation MoCA 2.0 coaxial network controller, and RTL8211E-VB-CG chip solution.

It’s used to create home networks over existing in-home coax cabling with gigabit throughput performance. It is backward-compatible with MoCA 1.1 and MoCA 1.0.

In addition, it supports an enhanced mode with a MAC throughput of 1.2Gbps within a 16-node network.

This MOCA frequency range is 1125M to 1675M. It supports 1Gbps data rate and supports a bonded operation in dual 100MHz RF channels.

It provides an extremely fast connection in LAN network.

MOCA-MXL001 provides two RF interfaces which are RF_IN and RF_OUT. The RF_IN port is used for two nodes to establish connection.

RF_OUT is used for mixing the CATV signal to RF_IN port or filtering out the CATV signal from RF_IN port.
